For the high powered rocketry (HPR) project, we designed a small gun powder powered rocket. We plan on launching the rocket on the 2nd of July at the East Anglian Rocketry Society rocket range at Cambridge.

I was involved in designing the flight computer for the rocket. The flight computer has the following features:

• Battery life of at least 20min
• GPS for location data
• Inertial Measurement Unit
• Environment Sensor to measure temperature, humidity and pressure
• Flash chip to store data
• Radio for communicating GPS coordinates for recovery
• Buzzer for aiding in recovery
• Board width less than the inner 36mm inner diamter of the rocket tube and weight less than 100g

The current project, including hardware and software, can be found in this repository. The schematic of the PCB can be viewed below.

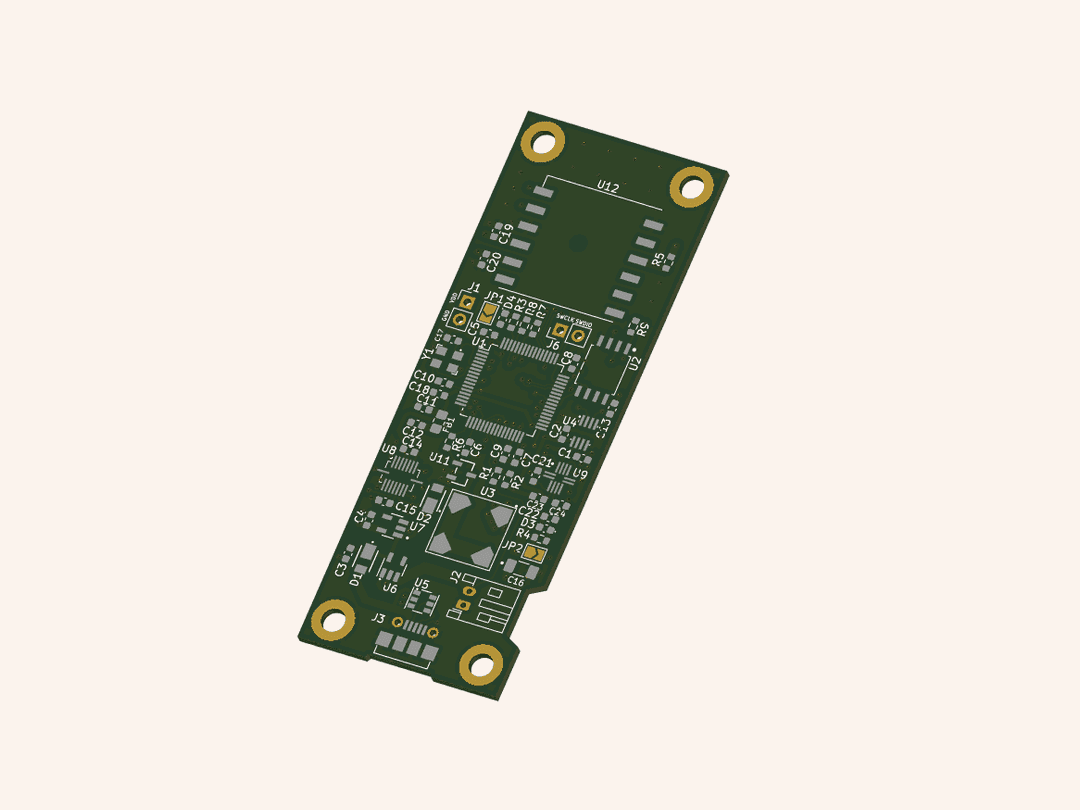

The 3D view of the PCB can be viewed below.
